Seagate FireCuda 530R NVMe Internal Solid-State Drive with Heatsink (M.2 2280)

Capacity

Price

$437.57

Per TB$218.79

AmazonBuy on Amazon

Also available at

Reasons to buy

  • PCIe Gen4 x4 NVMe 1.4 class performance with up to about 7,400 MB/s sequential reads on Seagate's published tables.
  • Factory heatsink is meant to cut thermal throttling without a separate cooler hunt for PS5 or desktop M.2 installs.
  • High endurance for the 4 TB SKU at 5,050 TBW, which suits heavy game libraries and large project files.
  • Microsoft DirectStorage support and PS5 compatibility are called out on Seagate and major retailer listings.
  • Five-year limited warranty plus three years of Rescue Data Recovery Services on official Seagate documentation.

Reasons to avoid

  • Heatsink height exceeds a standard M.2 2280 footprint, so tight laptops or low-profile boards may not fit.
  • Price per terabyte climbs sharply at 4 TB compared with budget Gen4 drives that skip bundled cooling.
  • Peak sequential specs do not guarantee identical load times versus every other fast NVMe drive in every title.
  • The pre-installed heatsink is not user-removable without risk of damage per Seagate install guidance.

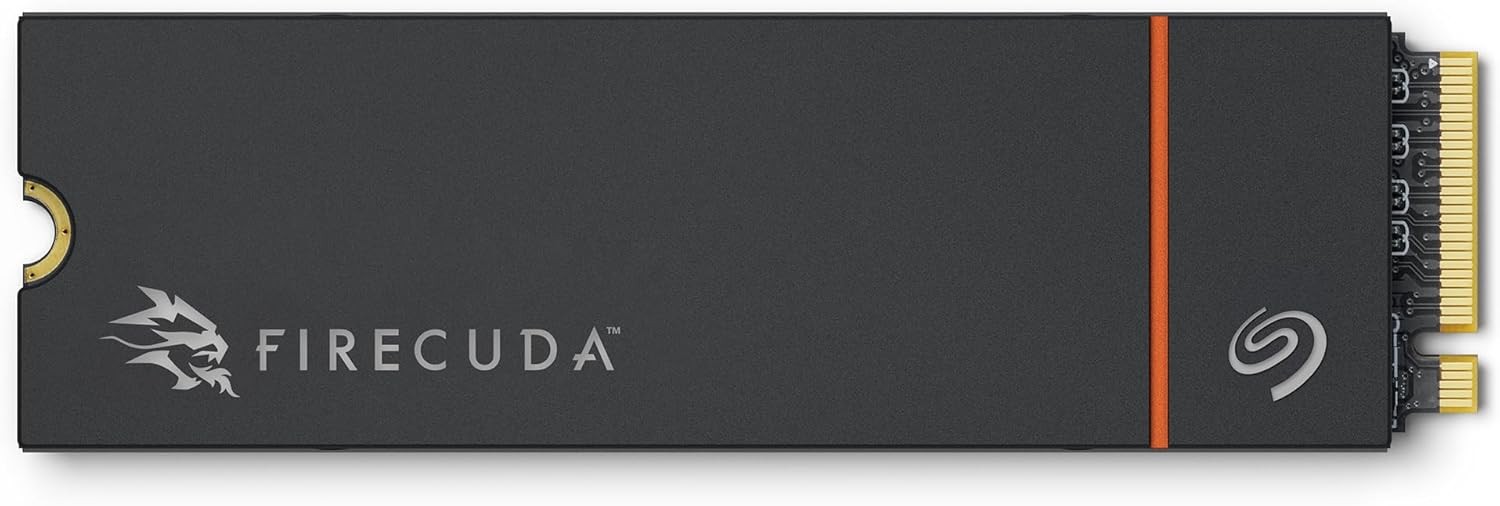

Seagate FireCuda 530R NVMe Internal Solid-State Drive with Heatsink (M.2 2280) (2 TB) — product photo
2 TB

Specifications

endurance tbw
2400
sequential write mb s
6900

Researched and maintained by Hard Drive Prices Editorial Team. · Updated June 5, 2026

User ratings

  • Amazon
    4.7(110)

What you're getting

Seagate FireCuda 530R with Heatsink is a PCIe Gen4 x4 NVMe 1.4 M.2 solid-state drive aimed at gaming PCs, creative workstations, and PS5 storage expansion. Retail units ship with a factory-attached heatsink and use 3D TLC NAND behind Seagate's validated controller stack.

Seagate's datasheet lists sequential reads up to 7,400 MB/s on all capacities in this line, while sequential writes step from about 7,000 MB/s on 1 TB down to about 6,800 MB/s on 4 TB. Random performance is rated up to 1.3 million IOPS for both read and write at 4 KB QD32 on published tables.

Endurance scales with capacity: 1,100 TBW on 1 TB, 2,400 TBW on 2 TB, and 5,050 TBW on 4 TB, with 1.8 million hour MTBF on the family sheet. The heatsink raises height above a bare 2280 card (up to about 11.10 mm on larger SKUs), so confirm M.2 clearance and connector height (H3.2 and above recommended) before you buy.

Retail coverage includes a five-year limited warranty plus three years of Rescue Data Recovery Services on Seagate materials. Verify warranty, rescue terms, and regional support on Seagate's site before purchase because box bundles can differ by channel.

Buying context

Typical value (not live pricing)

At recent Amazon snapshots near $290 for 1 TB, about $438 for 2 TB, and about $739 for 4 TB, effective cost lands near $0.29/GB, $0.22/GB, and $0.18/GB respectively before tax. Heatsink Gen4 drives trade above bare-budget NVMe; confirm checkout pricing because SSD sales move fast.

Where this line often shows up

  • PS5 internal M.2 expansion
  • PCIe Gen4 gaming desktop
  • DirectStorage-capable Windows PC
  • 4K video project scratch volume
  • Steam and launcher library drive

Features

  • Gen4 NVMe throughput PCIe Gen4 x4 NVMe 1.4 interface with up to about 7,400 MB/s sequential read on Seagate datasheets.

  • Built-in cooling Custom heatsink is factory attached to extend sustained performance under heavy transfers.

  • 3D TLC NAND Uses 3D TLC flash with capacity-tier endurance from 1,100 TBW to 5,050 TBW.

  • DirectStorage ready Marketing cites Microsoft DirectStorage for faster asset streaming on supported Windows titles.

  • Console expansion path Listed as PS5 compatible when installed in the internal M.2 bay with adequate clearance.

  • Rescue bundle Three years of Rescue Data Recovery Services appear on Seagate warranty materials for retail kits.
